Tube Amp Jacks, Plugs, Connectors


Switchcraft 1/4 inch jacks

Use the washers on this page to isolate your metal jacks from the chassis
Jack isolation shoulder washer
Lock washers for Switchcraft Jacks are located on this page
Misc Hardware Page

Switchcraft 11 jack

1/4 phone jack - no ground switch. 7mm thread length
Used for speaker connections
Price each = $2.10

Customer Ratings Customer Ratings

Qty -

Switchcraft 12A jack

1/4 phone jack with ground switch. 7mm thread length
Used for amplifier input jacks.
Price each = $2.60

Customer Ratings Customer Ratings

Qty -

Switchcraft L12A jack

1/4 phone jack with ground switch and longer threads
Threads length is 10mm
Used for amplifier input jacks

Price each = $2.70

Customer Ratings Customer Ratings

Qty -

Switchcraft 12B stereo jack

1/4 stereo phone jack. 7mm thread length.
Used on wah wah pedals, active guitars and foot pedal jacks.
Used to turn on a battery by grounding the black negative wire of the battery
Price each = $2.82

Customer Ratings Customer Ratings

Qty -

Marshall Style Jacks


4 Solder lug Marshall style jack

Old style jack with chrome bezel nut
7mm thread length. 4 lug Solder terminals.
Jack ground is insulated from chassis.
11mm chassis hole size
If your face panel is less than .125" thick,
you will need one of the washers I sell on this page
Marshall jack washer

Price each = $2.10

Customer Ratings Customer Ratings

Qty -

4 Solder lug Marshall style jack

Jack with black plastic nut
7mm thread length. 4 lug Solder terminals.
Jack ground is insulated from chassis
11mm chassis hole size
Price each = $2.10

Customer Ratings Customer Ratings

Qty -

6 Solder lug Marshall style jack

Stereo jack with black plastic nut
7mm thread length. 6 lug Solder terminals.
Jack ground is insulated from chassis
11mm chassis hole size
Price each = $2.10

Customer Ratings Customer Ratings

Qty -

4 PC lug Marshall style jacks

Jack with black plastic nut
7mm thread length. 4 lug PC board terminals.
Jack ground is insulated from chassis
11mm chassis hole size
Price each = $2.10

Customer Ratings Customer Ratings

Qty -

6 PC lug Marshall style jack

Stereo jack with black plastic nut
7mm thread length. 6 lug PC board terminals.
Jack ground is insulated from chassis
11mm chassis hole size
Price each = $2.10

Customer Ratings Customer Ratings

Qty -

Misc Jacks and Plugs


Fender Speaker Plug

This is the flat style Fender speaker plug found on most older Fenders.
Push your wires through the hole and Solder them
Then snap on the Fender F cap shown below to cover the plug.
Price each = $9.00

Customer Ratings Customer Ratings

Qty -

Fender F cap

This is the cap that covers the speaker cable plug on Fender combos and heads
It snaps onto the Fender speaker Plug above
Price each = $4.00

Customer Ratings Customer Ratings

Qty -

1/4 inch end pin jack

Stereo end pin jacks for acoustic or active electronics guitars.
Used to turn on a battery when plug is inserted.
Price each = $9.00

Customer Ratings Customer Ratings

Qty -

RCA jack cable end

Used on Reverb cables and foot switches.
Price each = $0.50

Customer Ratings Customer Ratings

Qty -

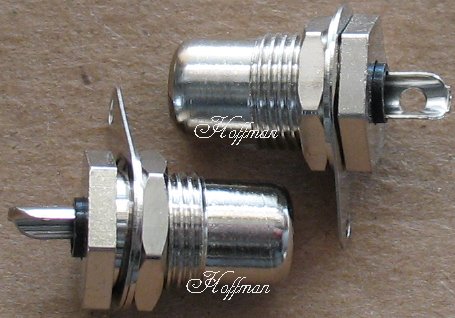

RCA chassis jack

RCA chassis mount phono jack
Fits in a 3/8" Fender chassis hole.
Used in Fender chassis as the reverb and tremolo jacks.
Also used on Champs and Bassman's as the speaker jacks.
Price each = $3.25

Customer Ratings Customer Ratings

RCA chassis jack - Black
RCA chassis jack - Red
Fill in all quantities and then press this button -

Bias tip jack

Tip jacks for bias test points
Insert your multimeter tip into the end to read your bias voltage or current
Mounts in a 1/4 inch hole. Head is 3/8 inch wide.
Total Length is 1 inch. Solder tab
Price each = $1.00

Customer Ratings Customer Ratings

Bias tip jack - Black
Bias tip jack - Red
Fill in all quantities and then press this button -

Dual Banana plug

Used to make Bias Checkers.
Use this to make Bias checkers
These plugs will plug into many multimeters that have .75 inch center to center hole spacings
Price each = $2.25

Customer Ratings Customer Ratings

Qty -

Single Banana Plug

Used to make Bias Checkers.
Use this to make Bias checkers
Use these plugs if your multi meter plug holes are wider than .75 inch center to center
Price each = $1.15

Customer Ratings Customer Ratings

Single Banana Plug - Red
Single Banana Plug - Black
Fill in all quantities and then press this button -

Single Banana Jack

Chassis mount Banana jacks
Price each = $0.75

Customer Ratings Customer Ratings

Single Banana Jack - Red
Single Banana Jack - Black
Fill in all quantities and then press this button -

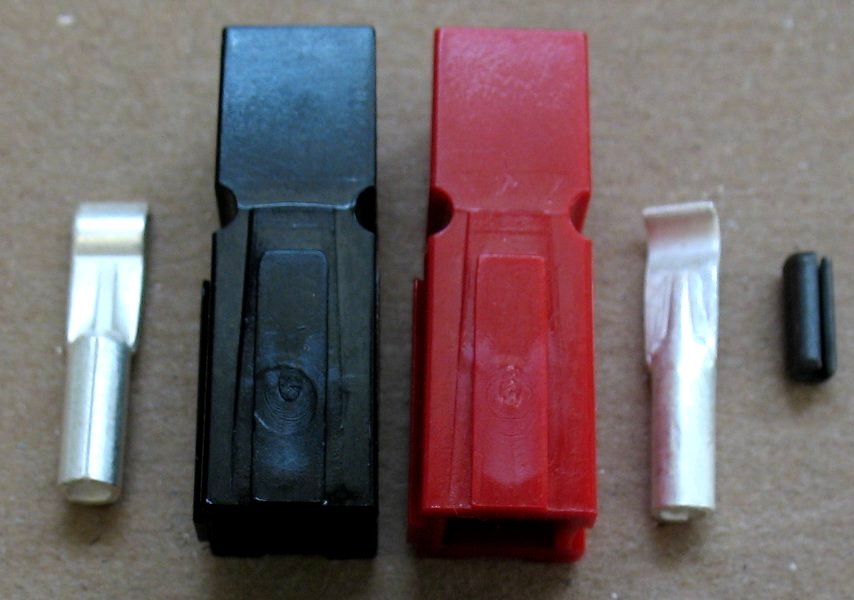

Anderson 15 amp powerpole set

15 Amp Red/Black Anderson Powerpole Sets for 16-18ga wire
One set includes 1-Red jacket, 1-Black jacket, two terminals and a roll pin
Each Red and Black jacket has a dovetail on all four sides so you can slide these together in all sorts of shapes.
The small roll pin locks the jackets together.
The terminals can be crimped to the wire, but crimping and soldering is best.
You push each terminal into the housing until it clicks and locks into place.
The terminals come together in a spring loaded wiping motion that keeps them clean and tight.
Go to this page Anderson PowerPole assembly instructions and more pictures
Price each = $1.40

Customer Ratings Customer Ratings

Qty -

Anderson powerpole terminal

Extra terminals for the Anderson PowerPole connector above.
Just in case you destroy one of the terminals that comes with the set above.
Price each = $0.25

Customer Ratings Customer Ratings

Qty -

Tube pedal power jack

Power inlet for Tube pedal chassis
This inlet fits the Tube pedal chassis on the chassis page.
Use two #4 x 3/8" screws and nuts to mount it to the Tube pedal chassis.
This power inlet is for the 12 VAC wall wart power supply on the transformer page.
Price each = $1.25

Customer Ratings Customer Ratings

Qty -

George-L cable and ends

Voted hands down the BEST SOUNDING CABLE, by GUITAR PLAYER MAGAZINE in a 36 cable shootout.
The ends are not soldered on, you push them on and then tighten down a set screw on the straight ends.
On the right angle ends you twist the cap tight.
The cable and ends come with an easy to follow instruction sheet.
They are way tougher than they look and they can be fixed on a gig in less than a minute.
Very low capacitance's in the cable and plug ends help preserve the high end and makes your tone sound fuller.
Sounds like hype but they really do work.
The George-L ends only work with the George-L cable.
The cable ends are Guaranteed for life by George-L.
Note: George-L also makes the .155 cable in Red. It is the same cable, but I only carry the black.
They also make a larger cable but I do not stock it.
Click here to read a George-L cable review

George-L short plug

George-L short straight plug
Price each = $6.50

Customer Ratings Customer Ratings

Qty -

George-L long plug

George-L long straight plug
Makes it easier to grab the plug in Strats
Price each = $6.50

Customer Ratings Customer Ratings

Qty -

George-L straight plug jacket

George-L cable jacket for the short and long plugs above
Add a strain relief to your straight plug.
Push the jacket over the end of the plug until it snaps into place.
Price each = $1.50

Customer Ratings Customer Ratings

Qty -

George-L 90 degree plug

George-L 90 degree ends
Price each = $6.50

Customer Ratings Customer Ratings

Qty -

George-L 90 plug jacket

George-L cable jacket for the 90 degree plug above
Add a cover to your 90 degree plug.
Just push the jacket over the end of the 90 degree plug
Price each = $1.00

Customer Ratings Customer Ratings

Qty -
