LED Bike light parts

Watch this Shopping cart tips video

Switches

Judco Switches, clicky switches and switch boots have been moved to my switches page
Click here to go to my Switches page
Close outs and discontinued items are on my Yard Sale Page Here

Marwi Thumb Switch housing

These handlebar thumb switches are pretty slick
All the regular type Judco Tall and Short switches fit this housing
The judco switches with the copper tabs fit better than the switches that have wire leads, but you can make those work also
The tall Judco switches and tall switch boots work well if you have heavy gloves on
The short Judco switches and short switch boots work well also
There are several types of Judco switches below including Momentary so you can rig up just about any driver type
The velcro strap is very strong
The mini shielded cable on my wire-cable page works well with this housing
Note: The Judco flat switches do not fit this housing

Click here for a page of big pictures and info about these switch housings

The Judco switches that fit this housing are on my switches page here

Price each = $1.25

Customer Ratings Customer Ratings

Qty -

Marwi Helmet and Handlebar mounts

The Marwi mounts are very nice. I have used them for many years because they are so versatile.
I like to leave a handlebar mount on each of my bikes.
You can easily move your light from the handlebar to the helmet without removing the main mount.
The Helmet and Handle bar mounts use the same slide lock system.
You may also need the Nylon mounting bolt kit if you do not already have a mounting bolt
Check out this page for more info and pictures of the Marwi Mounts

Marwi helmet mount

Very Light weight, flexible and durable plastic construction.
Heavy Duty, double sided Velcro, mounting strap
Mounting strap is approx. 12 inches long
Rubber on the under side that grips the helmet.
Has a cord snap lock off to one side.
The helmet mount comes with the Slide mount shown

Price each = $1.26

Customer Ratings Customer Ratings

Qty -

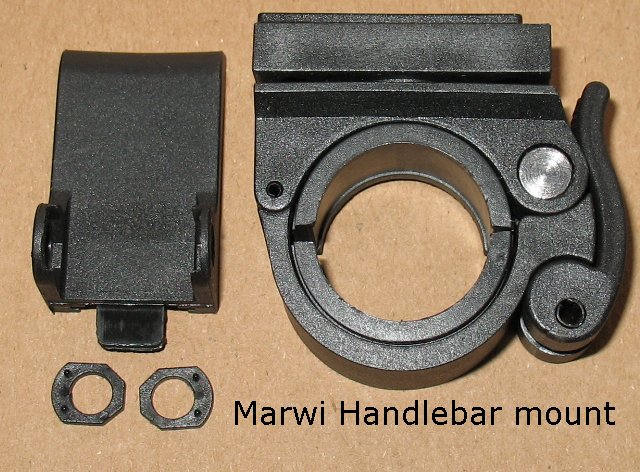

New style Marwi Handle Bar Mount

Heavy Duty, lightweight, very durable plastic construction.
Adjustable threaded cam lock
It has removable adapters for use with fat 31mm or regular 25mm handle bar sizes.
The Top mount swivels side to side so you can aim the light beam where you want it.
Includes two sizes of rubber shims
The helmet mount comes with the Slide mount shown

Price each = $4.20

Customer Ratings Customer Ratings

Qty -

Marwi Slide Mounts

This is the standard straight mount that comes with the Marwi new style handlebar and helmet mounts

Price each = $0.53

Customer Ratings Customer Ratings

Qty -

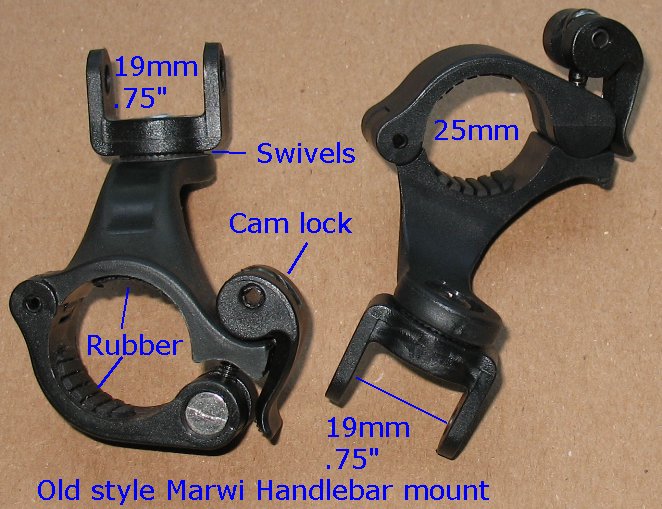

Old Style Marwi Handle bar Mount

Heavy Duty, lightweight, very durable plastic construction.
Adjustable threaded cam lock. The light mount is offset to the side.
Only fits regular 25mm handle bar sizes. Has built in rubber handlebar grips.
The Top U shaped mount swivels side to side so you can aim the light beam where you want it.
 You bolt the light to the U shaped mount.The upright U shaped mount has .25" holes
Order the lightweight Marwi Nylon mount kit if needed
Price each = $0.75

Customer Ratings Customer Ratings

Qty -

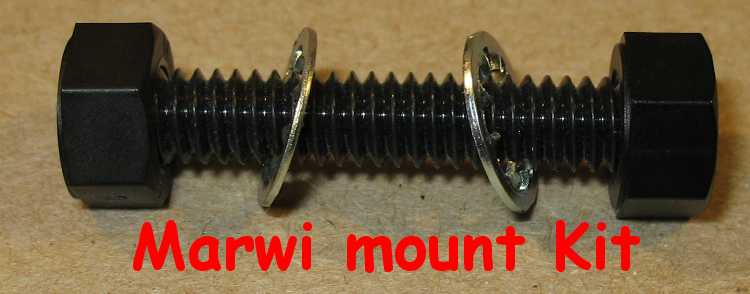

Marwi Mount Kit

Super light weight Nylon Mounting bolt kit for Marwi lights and Mounts
The kit includes
1 x Nylon Rod
2 x Nylon nuts
2 x Internal toothed lock washers
You can replace the steel bolt and nut on Marwi lights with this hardware.
Installation Tips:
I like to super glue one nut in place and leave the other nut free to turn by hand.

If you are trying to install this on older Marwi lights,
run a 1/4" drill bit through the Marwi housing to open the hole up a bit.

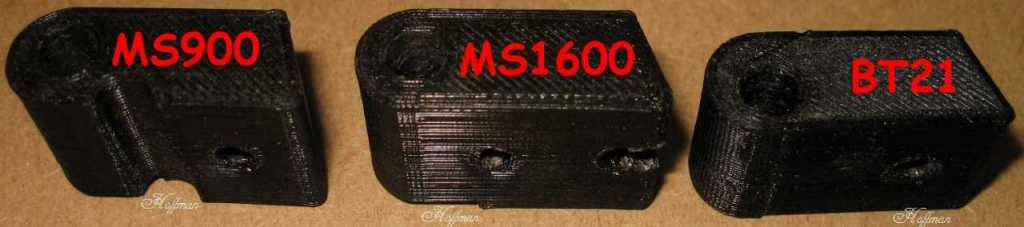

You need this kit if you are ordering Magic Shine adapters
Price each = $1.00

Customer Ratings Customer Ratings

Qty -

Info

Marwi XML Light building info

Go here to see information about all the items in the photo on the left
For info on building the Marwi XML LED light go hereMobile Catalog Page Created - https://hoffmanamps.com/MyStore/perlshop.cgi?action=enter&action2=create&thispage=BikeLightsMobileCatalog Page Created - https://hoffmanamps.com/MyStore/perlshop.cgi?action=enter&action2=create&thispage=BikeLights

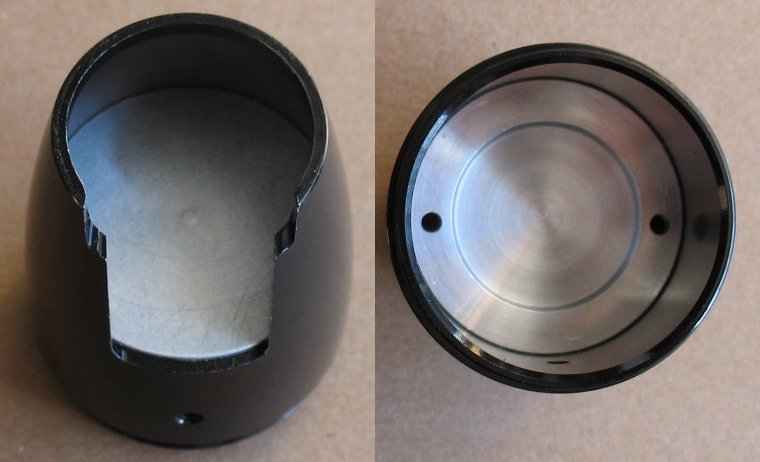

Marwi XML Heat Sink

Marwi Bullet housing heat sinks
I had a machine shop make a bunch of these heat sinks that will work in the Marwi Bullet shaped housings
These heat sinks are made to work with the XML LED and XML reflector shown on this page
The heat sink fits very snug, they must be pressed into the housiung
You could also use it for other LED's and optics by moving it forward or back in the housing to the depth you require.
There is a depression in the front that a 21mm LED will sit down in
You will have to drill one or two holes so your wires can pass through the heat sink to the driver board which sits behind the heat sink
These heat sinks only fit the later style Marwi Bullet housings

Price each = $2.00

Customer Ratings Customer Ratings

Qty -

Stock 35mm reflector

Stock 35mm aluminum reflector with threaded led mount
This reflector also comes with a threaded LED mount for 16.3mm or smaller LED's.
This is my favorite reflector, and the one I use for my LED projects.
It must be machined to be able to use it with a P7 or XML LED
This reflector fits into all the Marwi housings shown on this page
Price each = $2.48

Customer Ratings Customer Ratings

Sorry, this item has been discontinued.
Go Here for more info

P7 Machined reflector

This reflector has been machined on my CNC machine for P7 use.
The threaded area has been removed and the hole has been enlarged to approx 9.2mm
The SSC P7 on this page fits perfectly onto the back of the machined reflector.

This is my favorite reflector and the one I use for most LED projects.
It is used to convert Marwi Halogen lights to LED lights
This reflector fits all the Marwi housings shown on this page
Price each = $2.48

Customer Ratings Customer Ratings

Sorry, this item has been discontinued.
Go Here for more info

XML Machined Reflector

This reflector has been machined on my CNC machine for XML use.
The threaded area has been removed and
the center area has been reduced down so the solder connections do not short out on the back of the reflector
The XML LED on this page fits perfectly onto the back of the machined reflector.

This is my favorite reflector and the one I use for my LED projects.
It is used to convert Marwi Halogen lights to LED lights
This reflector fits all the Marwi housings shown on this page
Price each = $2.48

Customer Ratings Customer Ratings

Sorry, this item has been discontinued.
Go Here for more info

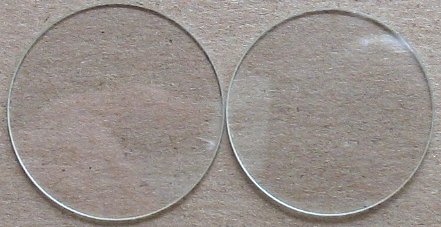

34.8mm Glass Lens

This 34.8mm glass lens fits all the Marwi light bodies
Price each = $0.25

Customer Ratings Customer Ratings

Qty -

33mm Glass lens

Glass 33mm diameter
Price each = $0.25

Customer Ratings Customer Ratings

Qty -

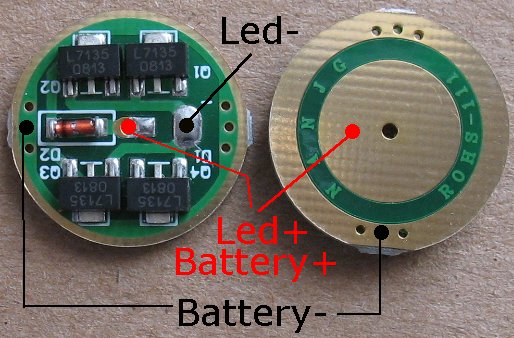

1400 ma Current limiter board

17mm diameter x 2.85mm tall
Used to limit current to LED's.
5W 1400mA (+/- 10%) Regulated Power Output
Recommended input voltage range: 3.6V to 4.5V
Use two in parallel to get 2.8 amps for a XML's or SSC P7 LED's
I use two of these and a SPDT Judco switch to build my Marwi Lights.
See my bike lights page for info on how I make that driver
Price each = $1.59

Customer Ratings Customer Ratings

Qty -

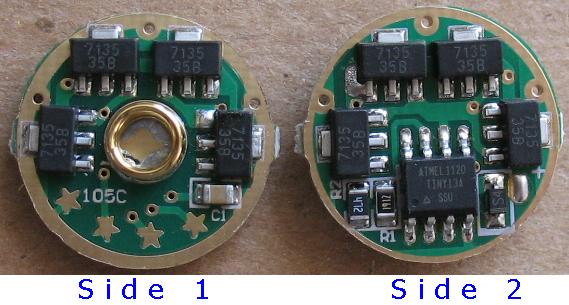

2800ma Multi Mode driver

17mm diameter x 6mm tall
Used to limit current to LED's.
This board has a control chip and you can select 4 modes of operation
The modes are selected by grounding the stars shown on the Side 1 image
This page shows how to select the different modes
This is the board I use in my Marwi bullet housing builds
Price each = $3.31

Customer Ratings Customer Ratings

Sorry, this item has been discontinued.
Go Here for more info

Marwi Halogen lights

The lights shown below are new old stock Marwi halogen lights
I purchased a huge quantity of these lights from the Marwi USA distributor who has now stopped distributing Marwi lights in the USA
All the Marwi handlebar and helmet mounts I sell fit these lights
You may also need a Marwi mount and Marwi bolt kit to go with these lights
Note that these lights were shipped to me all together in big boxes
There may be slight cosmetic blemishes on the bodies, nothing serious.
Note that I do not stock 6 volt battery packs for these lights.
I do not have the female Trailtech cable ends for these lights
Go to this page for more info, battery pack info and pictures of these lights.

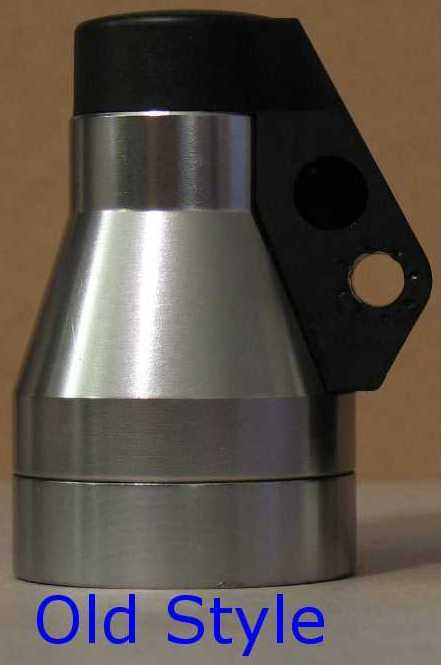

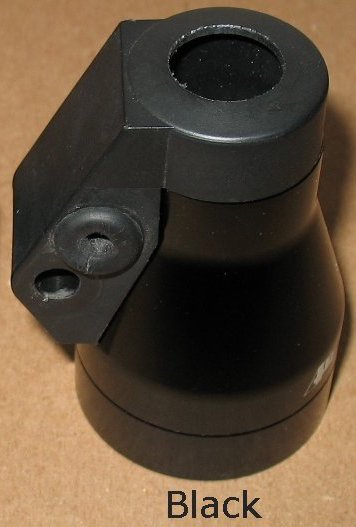

Single old Style Marwi light

These are the older style, Bell shaped, Marwi Halogen lights

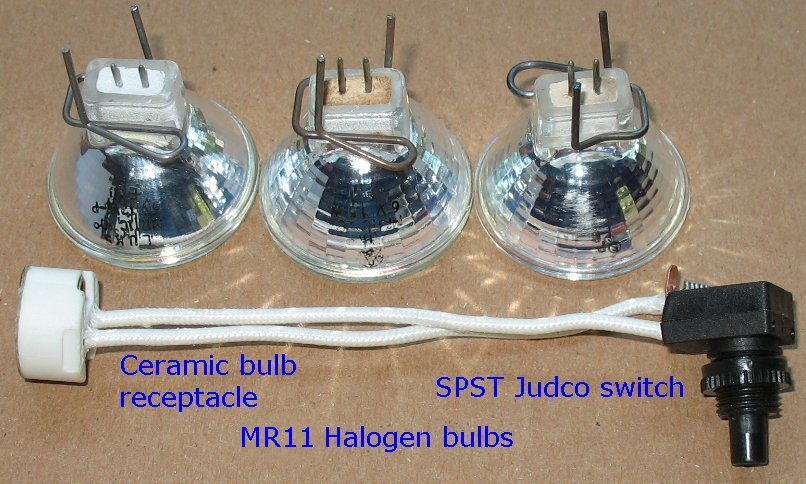

These lights have one 6 volt - MR11 halogen bulb
A SPST On/Off Judco switch with a rubber switch boot
The connector is a Trailtech type Male power plug
My SSC P7 heat sink fits into this old style Marwi body.
Note that to make a single old style Marwi, I have to cut a Double Marwi apart
Price each = $2.00

Customer Ratings Customer Ratings

Qty -

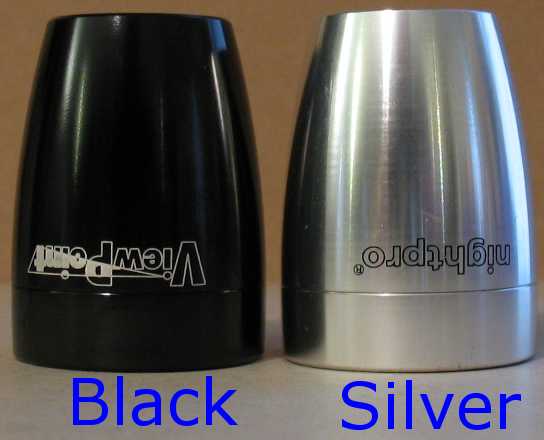

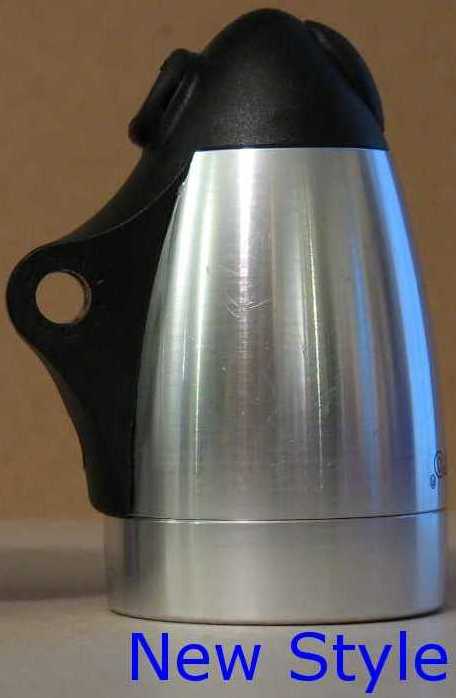

Single new style Marwi light

These are the newer style, Bullet shaped, Marwi Halogen lights
These lights have one 6 volt - MR11 halogen bulb
A SPST On/Off Judco switch with a rubber switch boot
The connector is a Trailtech type Male power plug
The XML heat sink listed on this page fits these bodies
Price each = $2.00

Customer Ratings Customer Ratings

Qty -

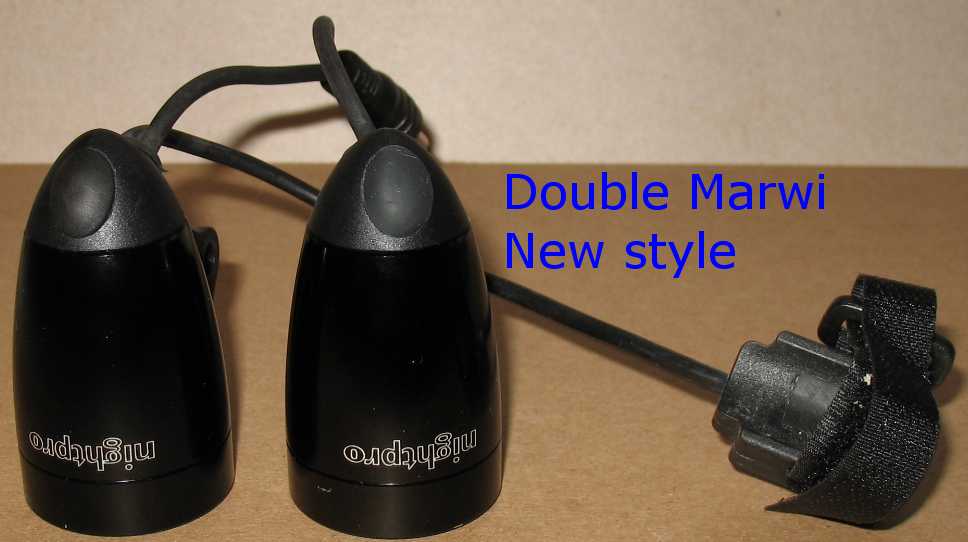

Double new style Marwi lights

These are the newer style, Bullet shaped, Marwi Halogen lights
These lights have two 6 volt - MR11 halogen bulbs
One light has a SPST On/Off Judco switch with a rubber switch boot
The other light has an external Judco SPST On/Off switch, a switch housing and a velcro strap
See the external Marwi switch housing info on this page for more info
Note that one body has a rubber switch boot and one body has a hard plastic cover that looks like a switch boot.
The connector is a Trailtech type Male power plug
The XML heat sink listed on this page fits these bodies
Price each = $4.00

Customer Ratings Customer Ratings

Qty -

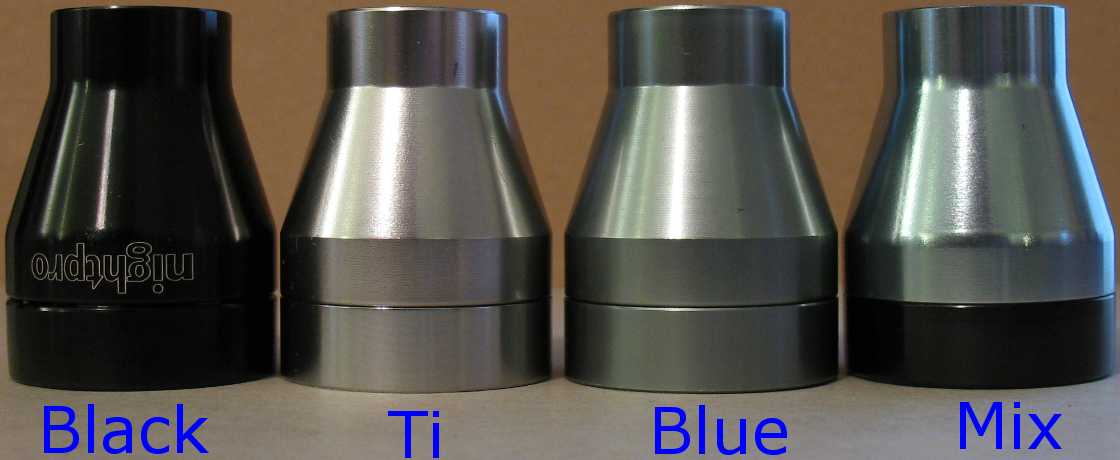

Old style Marwi light body Housings

I have several colors of the old style Marwi light housings. Some colors are in limited supply
The Ti is a light gray Titanium color.
The Bluish ones vary in the amout of blue
The mixed ones are a blue body with a black screw on bezel
I am not showing the rear plastic cap in this image, this image is for color purposes only
You can see a picture of the plastic rear section in the images below
These housings have a 10.9mm hole in the back plastic part that the Judco switches fit into
You may also need the 34.8mm piece of glass shown on this page
All the Marwi handlebar and helmet mounts fit these housings
Go to this page for more info and pictures of the Marwi bodies


Old style Marwi housing

This is the older bell shaped Marwi housing
This is the housing that I build my P7 LED lights with
My custom P7 heat sink fits this housing
This housing comes with the rear plastic mount section and the front screw on bezel

Price each = $0.50

Customer Ratings Customer Ratings

Old style Marwi housing - Black
Old style Marwi housing - Ti
Old style Marwi housing - Blueish
Old style Marwi housing - Mixed
Fill in all quantities and then press this button -

New style Marwi housings

I have lots of black housings in stock but silver is in limited supply
I am not showing the rear plastic cap in this image, this image is for color purposes only
You can see a picture of the rear plastic part below
The rear plastic part has a small switch cap at the top-rear
A small flat judco switch fits under the cap in the rear housing
The Judco Flat style switches shown on this page fit these housings

All the Marwi handlebar and helmet mounts fit these housings
Go to this page for more info and pictures of the Marwi bodies


New style Marwi housing

This is the newer bullet shaped Marwi housing
This housing comes with the rear plastic mount section and the front screw on bezel
You may also need the 34.8mm piece of glass shown on this page
The Judco Flat style switches shown on this page fit these housings

Price each = $0.50

Customer Ratings Customer Ratings

New style Marwi housing - Black
New style Marwi housing - Silver
Fill in all quantities and then press this button -

Marwi Bullet Body & Heat sink

These Marwi Bullet housings have the XML heat sink pressed into place
The heat sink is pressed all the way down for use with a XML reflector
The two wire holes have already been drilled
The body comes with the front screw on bezel and rear plastic switch housing
Look at the picture right above this one to see what the complete housing looks like
Price each = $1.00

Customer Ratings Customer Ratings

Qty -

Machined Marwi Body

This body has been machined on my CNC machine
The rear section has been enlarged for the colored clicky switch caps I sell on this page
This page shows how this body is used
Marwi body assembly page
Price each = $1.00

Customer Ratings Customer Ratings

Qty -

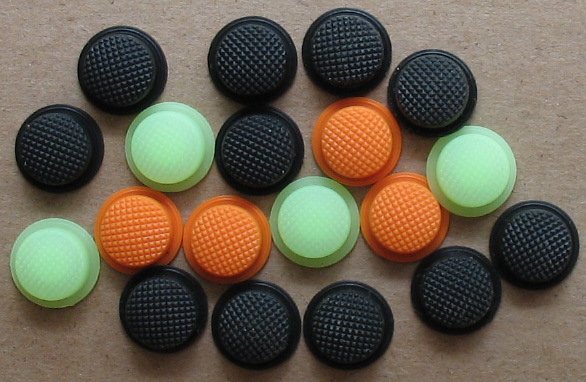

Rubber Tail Cap

Fits into a 14mm hole - 8.2mm tall
Used in many flashlights
The green cap glows in the dark after being exposed to light
These switch caps fit into my machined marwi bodies
Price each = $0.15

Customer Ratings Customer Ratings

Rubber Tail Cap - Black
Rubber Tail Cap - Green
Rubber Tail Cap - Orange
Fill in all quantities and then press this button -

MR11 Halogen bulb

New - Removed from new Marwi lights
Use a 6 volt battery pack = 5 x 1.2 volt batteries = 6 volt
Several different wattages and beam degrees
Grab bag: I reach into the box and pull one out and that's what you get.
Price each = $0.10

Customer Ratings Customer Ratings

Qty -

MR11 receptacle and Judco switch

MR11 ceramic receptacle and Judco SPST switch.
New - Removed from new Marwi lights
The MR11 bulb plugs into the ceramic receptacle .
The Judco switch rating is 14volts dc at 10 amps
Price each = $0.10

Customer Ratings Customer Ratings

Qty -

Marwi LED Items

Owners of Marwi LED lights information page
If you want to see Beam shots or night ride video's of the Marwi LED lights, go to this page.
Go to this page for hookup info, projects info and mods you can do using the parts below
Go here to see parts list and pictures of all the parts to make the Marwi P7 and XML lights

Sorry, I have discontinued making LED lights
The Chinese lights flooding the market no longer make it worth while to build LED lights from scratch
You can buy Chinese LED bike lights on ebay for under $40
If you have one of my LED lights and need a battery pack replacement, email me and I will build you one.

Chinese light Adapters

These adapters let you use the Marwi helmet or handlebar mounts with Chinese lights
Get rid of that silly rubber band mount on your Chinese lights and step up to Marwi Mounts
You choose the adpater you need based on the body style of the the light
Look at the body styles on this page to choose the adapter you need
Installation info and Chinese light Adapter info page
I call the models shown below MS900, MS1600 and BT21 because these were the first body styles I made the adapters for
There may be many Chinese lights out there with different model numbers and names that have the same body style
Choose your adapter based on your body style, not model number of your light
Note that you also need the Marwi mount kit shown right above this section
The Marwi mount kit is a nylon bolt, two nylon nuts and lock washers

Cree XML LED

Cree XML T6 LED
3.3 volts - max drive current 3 amps - 1000 lumens (Cree figures)
21mm diameter x 4.7mm tall
I use this LED for my Marwi Bullet Housing conversions
Price each = $8.93

Customer Ratings Customer Ratings

Sorry, this item has been discontinued.
Go Here for more info

Other items that you may need for your light projects, can be found on other pages in my web store
Wire - Grommets - Power Connectors - Switches - Screws


Enter My Tube Amp Parts Store Here
Mobile users Enter My Tube Amp Parts Store Here
Hoffman Amps Home Ordering Information PayPal info
Returning parts Sound Clips What's New
Q and A Hoffman Links Shipping Info/policy
E-mail Me Amplifier Service Technicians About Hoffman Amps
Hoffman Amplifiers Customer Loyalty Discount Program Information
Search the Hoffman Amps parts catalog
The Tube amp Library of information
Click the link above for Tube amp info, Schematics, Board building information.
Projects, Mods, Transformer diagrams, Photo's, Sound clips.
There are hundreds of pages of Tube amp information on my library page.
Please visit my Tube Amplifier Forum
Here's the place you can go to ask tube amplifier questions.
You will find a large community of friendly amp builders at the link above.
Check out my huge library of Schematics here
Information: Design your own custom Turret Board or Eyelet board
My on line DIY Layout Creator file analyzer program is here
My DIY Layout Creator file library is here
