Hoffman Amplifiers Fender Eyelet Board Order Page

Watch this Shopping cart tips video

Hand wired point to point eyelet boards

You have a choice of FR4/G10 Glass epoxy board material in two colors
The FR4/G10 eyelet boards do not need a backing board, you mount FR4/G10 boards with standoffs
You can order the boards below with just the holes drilled or with the eyelets installed


The layouts for all the boards on this page are the vintage Fender layouts
Click on the Name-Layout Link for each board to see the Fender Layout Diagram
Note that the boards below do not have wire holes or mountings holes
If you want wire holes or mounting holes, you will have to drill those
All my eyelet boards are 3.125 inches tall x the widths listed in the table below.
I recommend using FT caps for my Filter cap boards

Eyelets and standoffs are located on this page
Eyelet and Turret Lug staking tools are located on this page
Hoffman Turret boards are on this page
Misc Eyelet boards are on this page
Fender board sizing info is here my amp forum

These board install instructions are handy

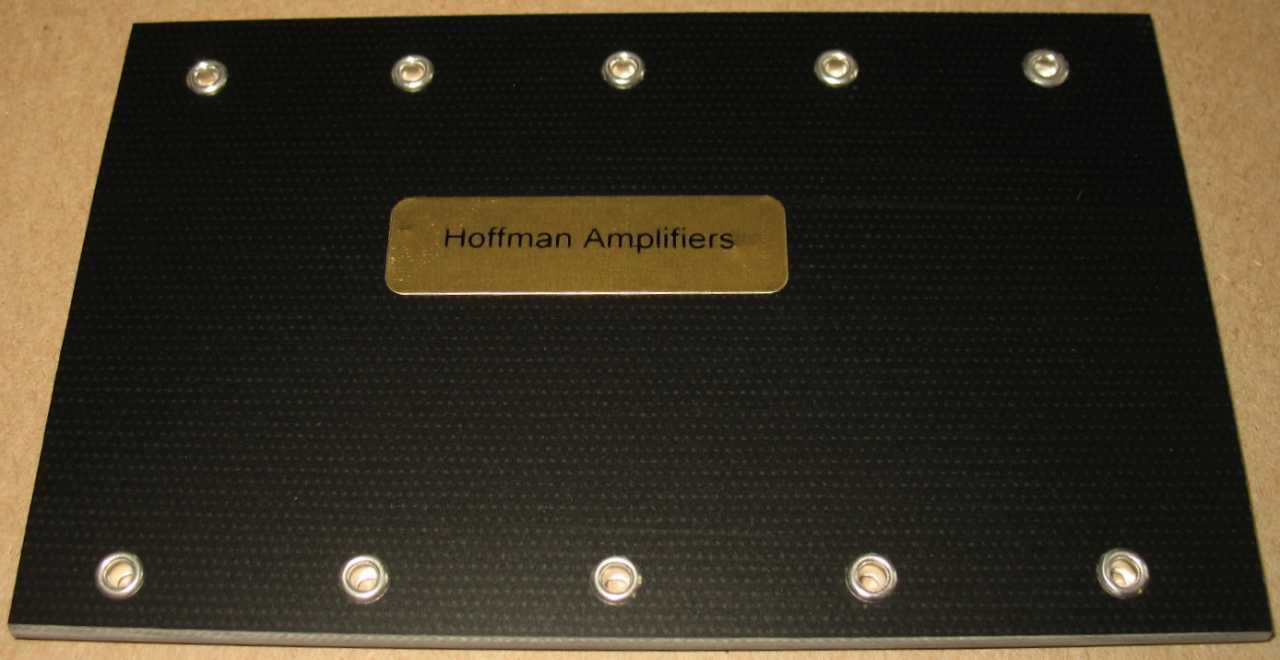

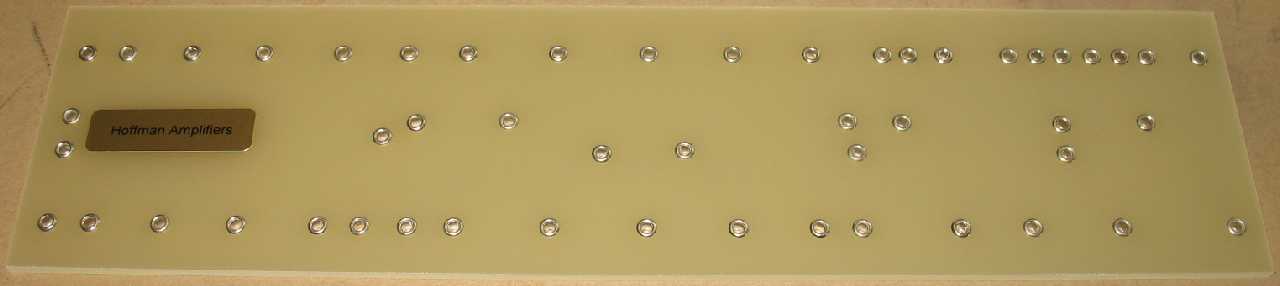

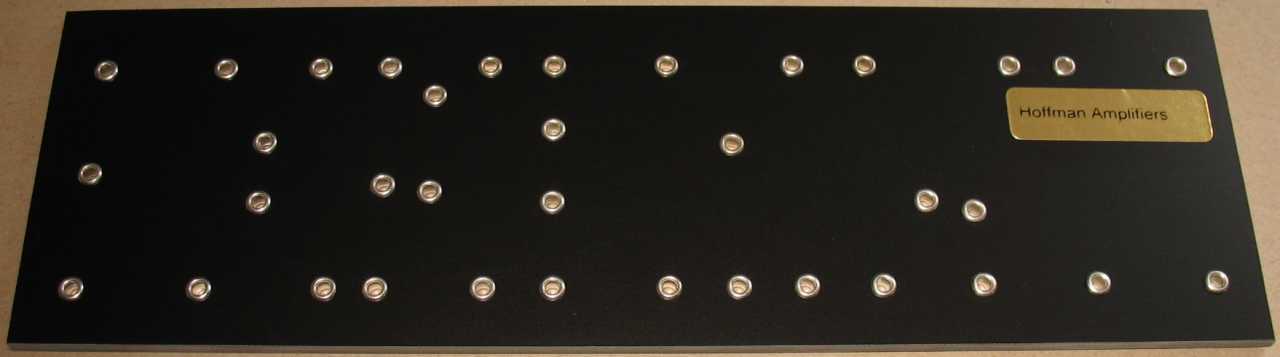

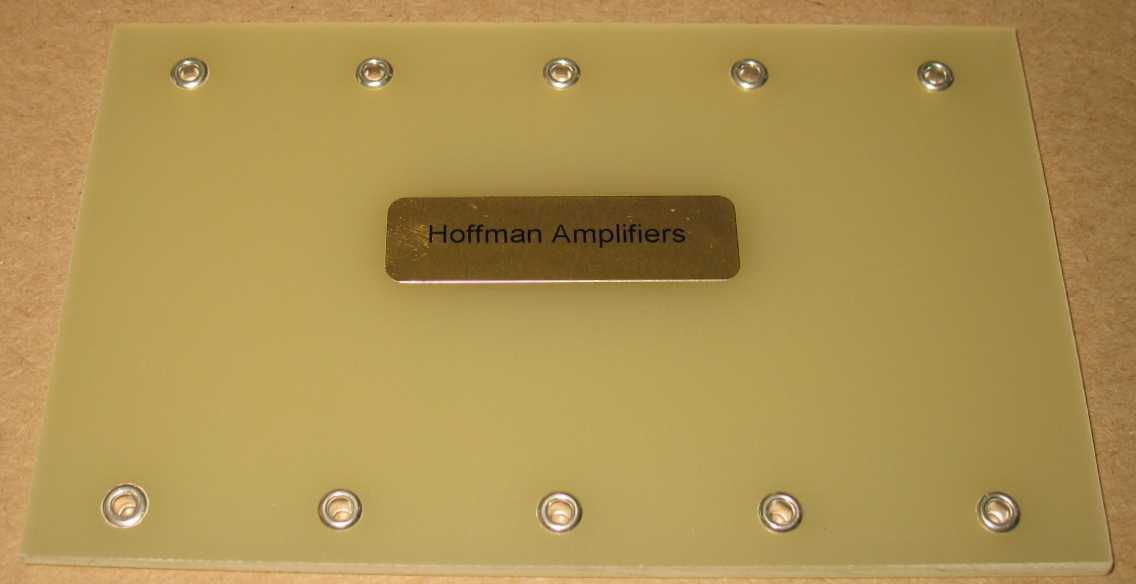

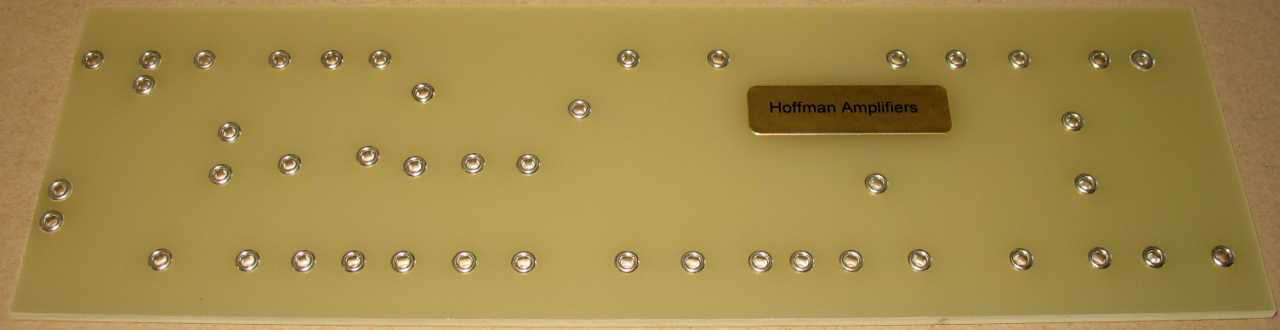

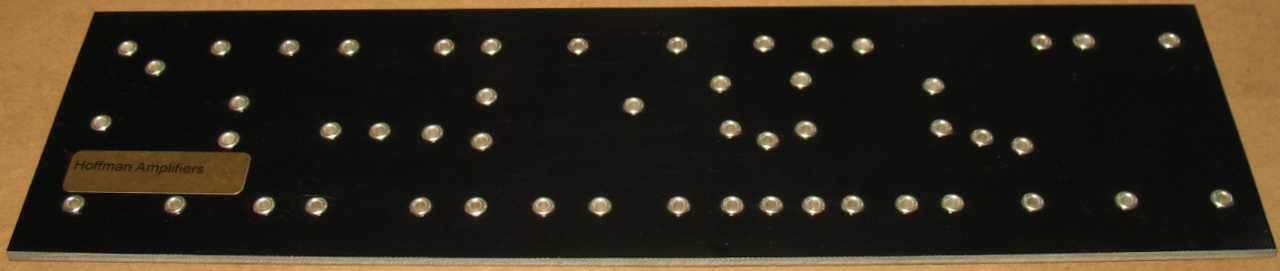

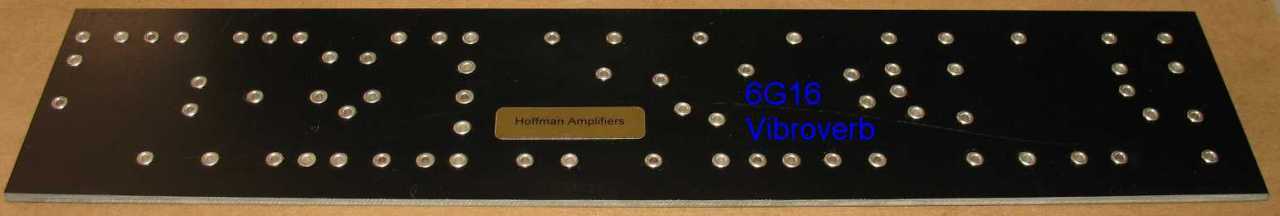

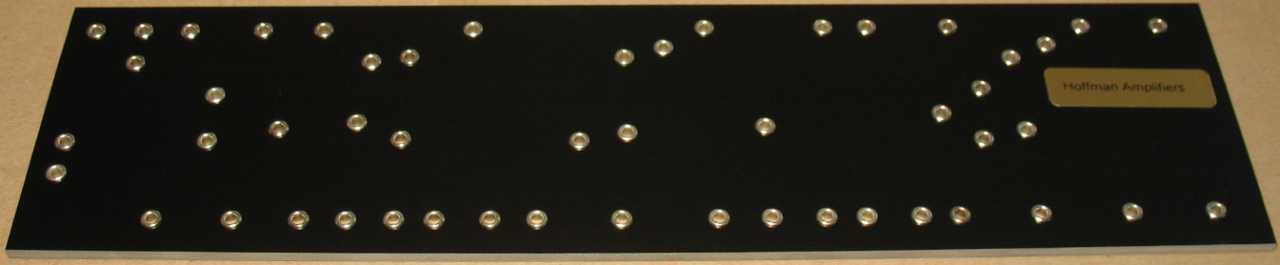

Click on the small images to see larger images
Drilled Board price is for the board with drilled holes only and no eyelets
Installed Board price has the holes drilled and the eyelets installed

#	Make	Name Layout	Model	Drilled Price	Board Color	Installed Price	Details	Image	Board Length	Holes
1	Fender	AB763 Reverb 1 channel	AB763	Drilled Only		Eyelets Installed	AB763 Reverb 1 channel		12.000	61
2	Fender	AB763 Reverb 1 channel	AB763	Drilled Only		Eyelets Installed	AB763 Reverb 1 channel		12.000	61
3	Fender	AB763 No Reverb	AB763	Drilled Only		Eyelets Installed	AB763 No Reverb		12.000	57
4	Fender	AB763 No Reverb	AB763	Drilled Only		Eyelets Installed	AB763 No Reverb		12.000	57
5	Fender	AB763 Reverb	AB763	Drilled Only		Eyelets Installed	AB763 Reverb		14.000	71
6	Fender	AB763 Reverb	AB763	Drilled Only		Eyelets Installed	AB763 Reverb		14.000	71
7	Fender	Bandmaster	5E7	Drilled Only		Eyelets Installed			12.500	51
8	Fender	Bandmaster	5E7	Drilled Only		Eyelets Installed			12.500	51
9	Fender	Bandmaster	AB763	Drilled Only		Eyelets Installed	AB763 No Reverb		12.000	57
10	Fender	Bandmaster	AB763	Drilled Only		Eyelets Installed	AB763 No Reverb		12.000	57
11	Fender	Bandmaster Reverb	AA1069	Drilled Only		Eyelets Installed	AB763 Reverb		14.000	71
12	Fender	Bandmaster Reverb	AA1069	Drilled Only		Eyelets Installed	AB763 Reverb		14.000	71
13	Fender	Bassman	5E6A	Drilled Only		Eyelets Installed			12.500	48
14	Fender	Bassman	5E6A	Drilled Only		Eyelets Installed			12.500	48
15	Fender	Bassman	5F6	Drilled Only		Eyelets Installed			11.500	52
16	Fender	Bassman	5F6	Drilled Only		Eyelets Installed			11.500	52
17	Fender	Bassman	5F6A	Drilled Only		Eyelets Installed			11.500	53
18	Fender	Bassman	5F6A	Drilled Only		Eyelets Installed			11.500	53
#	Make	Name Layout	Model	Drilled Price	Board Color	Installed Price	Details	Image	Board Length	Holes
19	Fender	Bassman	6G6	Drilled Only		Eyelets Installed			10.250	46
20	Fender	Bassman	6G6	Drilled Only		Eyelets Installed			10.250	46
21	Fender	Bassman	6G6A	Drilled Only		Eyelets Installed			10.250	47
22	Fender	Bassman	6G6A	Drilled Only		Eyelets Installed			10.250	47
23	Fender	Bassman	6G6B	Drilled Only		Eyelets Installed			10.250	45
24	Fender	Bassman	6G6B	Drilled Only		Eyelets Installed			10.250	45
25	Fender	Bassman	AA165	Drilled Only		Eyelets Installed			11.250	51
26	Fender	Bassman	AA165	Drilled Only		Eyelets Installed			11.250	51
27	Fender	Bassman	AA864	Drilled Only		Eyelets Installed			12.000	51
28	Fender	Bassman	AA864	Drilled Only		Eyelets Installed			12.000	51
29	Fender	Bassman	AB165	Drilled Only		Eyelets Installed			11.250	52
30	Fender	Bassman	AB165	Drilled Only		Eyelets Installed			11.250	52
31	Fender	Bias Board 1		Drilled Only		Eyelets Installed	Tube Rectifier		3.000	5
32	Fender	Bias Board 1		Drilled Only		Eyelets Installed	Tube Rectifier		3.000	5
33	Fender	Bias Board 2		Drilled Only		Eyelets Installed	Diode Rectifier		3.000	15
34	Fender	Bias Board 2		Drilled Only		Eyelets Installed	Diode Rectifier		3.000	15
35	Fender	Bronco	AA764	Drilled Only		Eyelets Installed			7.500	30
36	Fender	Bronco	AA764	Drilled Only		Eyelets Installed			7.500	30
#	Make	Name Layout	Model	Drilled Price	Board Color	Installed Price	Details	Image	Board Length	Holes
37	Fender	Champ	5E1	Drilled Only		Eyelets Installed			6.000	20
38	Fender	Champ	5E1	Drilled Only		Eyelets Installed			6.000	20
39	Fender	Champ	5F1	Drilled Only		Eyelets Installed			6.000	20
40	Fender	Champ	5F1	Drilled Only		Eyelets Installed			6.000	20
41	Fender	Champ	AA764	Drilled Only		Eyelets Installed			7.500	25
42	Fender	Champ	AA764	Drilled Only		Eyelets Installed			7.500	25
43	Fender	Concert	6G12	Drilled Only		Eyelets Installed			12.500	69
44	Fender	Concert	6G12	Drilled Only		Eyelets Installed			12.500	69
45	Fender	Concert	6G12A	Drilled Only		Eyelets Installed			12.500	74
46	Fender	Concert	6G12A	Drilled Only		Eyelets Installed			12.500	74
47	Fender	Concert	AB763	Drilled Only		Eyelets Installed	AB763 No Reverb		12.000	57
48	Fender	Concert	AB763	Drilled Only		Eyelets Installed	AB763 No Reverb		12.000	57
49	Fender	Deluxe	5E3	Drilled Only		Eyelets Installed			8.750	33
50	Fender	Deluxe	5E3	Drilled Only		Eyelets Installed			8.750	33
51	Fender	Deluxe	6G3	Drilled Only		Eyelets Installed			10.200	44
52	Fender	Deluxe	6G3	Drilled Only		Eyelets Installed			10.200	44
53	Fender	Deluxe	AB763	Drilled Only		Eyelets Installed	AB763 No Reverb		12.000	57
54	Fender	Deluxe	AB763	Drilled Only		Eyelets Installed	AB763 No Reverb		12.000	57
#	Make	Name Layout	Model	Drilled Price	Board Color	Installed Price	Details	Image	Board Length	Holes
55	Fender	Deluxe Reverb	AB763	Drilled Only		Eyelets Installed	AB763 Reverb		14.000	71
56	Fender	Deluxe Reverb	AB763	Drilled Only		Eyelets Installed	AB763 Reverb		14.000	71
57	Fender	Dual Showman Reverb	AA270	Drilled Only		Eyelets Installed	AB763 Reverb		14.000	71
58	Fender	Dual Showman Reverb	AA270	Drilled Only		Eyelets Installed	AB763 Reverb		14.000	71
59	Fender	Filter Cap Board	6G15	Drilled Only		Eyelets Installed	3 Filter Caps		3.000	6
60	Fender	Filter Cap Board	6G15	Drilled Only		Eyelets Installed	3 Filter Caps		3.000	6
61	Fender	Filter Cap Board	Large	Drilled Only		Eyelets Installed	5 Filter Caps		5.500	14
62	Fender	Filter Cap Board	Large	Drilled Only		Eyelets Installed	5 Filter Caps		5.500	14
63	Fender	Filter Cap Board	Large 2	Drilled Only		Eyelets Installed	6 Filter caps		6.500	16
64	Fender	Filter Cap Board	Large 2	Drilled Only		Eyelets Installed	6 Filter caps		6.500	16
65	Fender	Filter Cap Board	Large 3	Drilled Only		Eyelets Installed	7 Filter caps		7.500	14
66	Fender	Filter Cap Board	Large 3	Drilled Only		Eyelets Installed	7 Filter caps		7.500	14
67	Fender	Filter Cap Board	Small	Drilled Only		Eyelets Installed	5 Filter Caps		5.000	10
68	Fender	Filter Cap Board	Small	Drilled Only		Eyelets Installed	5 Filter Caps		5.000	10
69	Fender	Filter Cap Board	Tweed	Drilled Only		Eyelets Installed	4 Filter Caps		4.000	8
70	Fender	Filter Cap Board	Tweed	Drilled Only		Eyelets Installed	4 Filter Caps		4.000	8
71	Fender	Harvard	5F10	Drilled Only		Eyelets Installed			7.500	34
72	Fender	Harvard	5F10	Drilled Only		Eyelets Installed			7.500	34
#	Make	Name Layout	Model	Drilled Price	Board Color	Installed Price	Details	Image	Board Length	Holes
73	Fender	Princeton	5F2A	Drilled Only		Eyelets Installed			6.000	22
74	Fender	Princeton	5F2A	Drilled Only		Eyelets Installed			6.000	22
75	Fender	Princeton	6G2	Drilled Only		Eyelets Installed			9.250	31
76	Fender	Princeton	6G2	Drilled Only		Eyelets Installed			9.250	31
77	Fender	Princeton	AA964	Drilled Only		Eyelets Installed			10.000	36
78	Fender	Princeton	AA964	Drilled Only		Eyelets Installed			10.000	36
79	Fender	Princeton Reverb	AA1164	Drilled Only		Eyelets Installed			11.375	51
80	Fender	Princeton Reverb	AA1164	Drilled Only		Eyelets Installed			11.375	51
81	Fender	Pro	5C5	Drilled Only		Eyelets Installed			10.000	33
82	Fender	Pro	5C5	Drilled Only		Eyelets Installed			10.000	33
83	Fender	Pro	5E5	Drilled Only		Eyelets Installed			10.000	30
84	Fender	Pro	5E5	Drilled Only		Eyelets Installed			10.000	30
85	Fender	Pro	5E5A	Drilled Only		Eyelets Installed			12.500	51
86	Fender	Pro	5E5A	Drilled Only		Eyelets Installed			12.500	51
87	Fender	Pro	6G5	Drilled Only		Eyelets Installed			12.500	69
88	Fender	Pro	6G5	Drilled Only		Eyelets Installed			12.500	69
89	Fender	Pro	6G5A	Drilled Only		Eyelets Installed			12.500	75
90	Fender	pro	6G5A	Drilled Only		Eyelets Installed			12.500	74
#	Make	Name Layout	Model	Drilled Price	Board Color	Installed Price	Details	Image	Board Length	Holes
91	Fender	Pro	AB763	Drilled Only		Eyelets Installed	AB763 No Reverb		12.000	57
92	Fender	Pro	AB763	Drilled Only		Eyelets Installed	AB763 No Reverb		12.000	57
93	Fender	Pro Reverb	AA1069	Drilled Only		Eyelets Installed	AB763 Reverb		14.000	71
94	Fender	Pro Reverb	AA1069	Drilled Only		Eyelets Installed	AB763 Reverb		14.000	71
95	Fender	Rectifier Board 1	6G15	Drilled Only		Eyelets Installed	6G15 Reverb Unit		3.000	6
96	Fender	Rectifier Board 1	6G15	Drilled Only		Eyelets Installed	6G15 Reverb Unit		3.000	6
97	Fender	Reverb Unit	6G15	Drilled Only		Eyelets Installed	6G15 Reverb Unit		6.375	25
98	Fender	Reverb Unit	6G15	Drilled Only		Eyelets Installed	6G15 Reverb Unit		6.375	25
99	Fender	Showman	6G14A	Drilled Only		Eyelets Installed			12.500	74
100	Fender	Showman	6G14A	Drilled Only		Eyelets Installed			12.500	74
101	Fender	Showman	AB763	Drilled Only		Eyelets Installed	AB763 No Reverb		12.000	57
102	Fender	Showman	AB763	Drilled Only		Eyelets Installed	AB763 No Reverb		12.000	57
103	Fender	Super	5D4	Drilled Only		Eyelets Installed			11.750	28
104	Fender	Super	5D4	Drilled Only		Eyelets Installed			11.750	28
105	Fender	Super	5F4	Drilled Only		Eyelets Installed			12.500	51
106	Fender	Super	5F4	Drilled Only		Eyelets Installed			12.500	51
107	Fender	Super	6G4	Drilled Only		Eyelets Installed			12.500	69
108	Fender	Super	6G4	Drilled Only		Eyelets Installed			12.500	69
#	Make	Name Layout	Model	Drilled Price	Board Color	Installed Price	Details	Image	Board Length	Holes
109	Fender	Super	6G4A	Drilled Only		Eyelets Installed			12.500	74
110	Fender	Super	6G4A	Drilled Only		Eyelets Installed			12.500	74
111	Fender	Super Reverb	AB763	Drilled Only		Eyelets Installed	AB763 Reverb		14.000	71
112	Fender	Super Reverb	AB763	Drilled Only		Eyelets Installed	AB763 Reverb		14.000	71
113	Fender	Tremolux	5E9A	Drilled Only		Eyelets Installed			11.000	37
114	Fender	Tremolux	5E9A	Drilled Only		Eyelets Installed			11.000	37
115	Fender	Tremolux	5G9	Drilled Only		Eyelets Installed			10.000	45
116	Fender	Tremolux	6G9A	Drilled Only		Eyelets Installed			11.000	50
117	Fender	Tremolux	6G9A	Drilled Only		Eyelets Installed			11.000	50
118	Fender	Tremolux	AB763	Drilled Only		Eyelets Installed	AB763 No Reverb		12.000	57
119	Fender	Tremolux	AB763	Drilled Only		Eyelets Installed	AB763 No Reverb		12.000	57
120	Fender	Twin	5E8	Drilled Only		Eyelets Installed	Low Pwr Twin		13.500	53
121	Fender	Twin	5E8	Drilled Only		Eyelets Installed	Low Pwr Twin		13.500	53
122	Fender	Twin	5E8A	Drilled Only		Eyelets Installed	Low Pwr Twin		13.500	53
123	Fender	Twin	5E8A	Drilled Only		Eyelets Installed	Low Pwr Twin		13.500	53
124	Fender	Twin	5F8	Drilled Only		Eyelets Installed	High Pwr Twin		11.500	52
125	Fender	Twin	5F8	Drilled Only		Eyelets Installed	High Pwr Twin		11.500	52
126	Fender	Twin	6G8A	Drilled Only		Eyelets Installed			12.500	74
#	Make	Name Layout	Model	Drilled Price	Board Color	Installed Price	Details	Image	Board Length	Holes
127	Fender	Twin	6G8A	Drilled Only		Eyelets Installed			12.500	74
128	Fender	Twin Reverb	AB763	Drilled Only		Eyelets Installed	AB763 Reverb		14.000	71
129	Fender	Twin Reverb	AB763	Drilled Only		Eyelets Installed	AB763 Reverb		14.000	71
130	Fender	Vibrasonic	5G13	Drilled Only		Eyelets Installed			14.000	69
131	Fender	Vibrasonic	5G13	Drilled Only		Eyelets Installed			14.000	69
132	Fender	Vibrasonic	6G13A	Drilled Only		Eyelets Installed			14.000	74
133	Fender	Vibrasonic	6G13A	Drilled Only		Eyelets Installed			14.000	74
134	Fender	Vibro	5G9	Drilled Only		Eyelets Installed			10.000	45
135	Fender	Vibro Champ	AA764	Drilled Only		Eyelets Installed			7.500	30
136	Fender	Vibro Champ	AA764	Drilled Only		Eyelets Installed			7.500	30
137	Fender	Vibrolux	5F11	Drilled Only		Eyelets Installed			11.000	41
138	Fender	Vibrolux	5F11	Drilled Only		Eyelets Installed			11.000	41
139	Fender	Vibrolux	6G11	Drilled Only		Eyelets Installed			11.000	50
140	Fender	Vibrolux	6G11	Drilled Only		Eyelets Installed			11.000	50
141	Fender	Vibrolux	AB763	Drilled Only		Eyelets Installed	AB763 No Reverb		12.000	57
142	Fender	Vibrolux	AB763	Drilled Only		Eyelets Installed	AB763 No Reverb		12.000	57
143	Fender	Vibrolux Reverb	AA964	Drilled Only		Eyelets Installed	AB763 Reverb		14.000	71
144	Fender	Vibrolux Reverb	AA964	Drilled Only		Eyelets Installed	AB763 Reverb		14.000	71
#	Make	Name Layout	Model	Drilled Price	Board Color	Installed Price	Details	Image	Board Length	Holes
145	Fender	Vibrolux Reverb	AB568	Drilled Only		Eyelets Installed	AB763 Reverb		14.000	71
146	Fender	Vibrolux Reverb	AB568	Drilled Only		Eyelets Installed	AB763 Reverb		14.000	71
147	Fender	Vibroverb	6G16	Drilled Only		Eyelets Installed			14.000	70
148	Fender	Vibroverb	6G16	Drilled Only		Eyelets Installed			14.000	70
149	Fender	Vibroverb	AB763	Drilled Only		Eyelets Installed	AB763 Reverb		14.000	71
150	Fender	Vibroverb	AB763	Drilled Only		Eyelets Installed	AB763 Reverb		14.000	71

You can also have custom Turret boards and eyelet boards made
See this post on my amp forum about having custom boards made

There is a large collection of amp schematics and layout diagrams in my Schematics Library here
