Hoffman Amplifiers Turret Board Order Page

Watch this Shopping cart tips video

Hand wired point to point Turret Boards

Note that these are Hoffman Layouts, NOT original amp layouts
The layout diagrams, schematics and other info for Hoffman boards is on the Library page here
Make sure you look at all the info on the link above first

All my turret boards are 3.125 inches tall x the widths listed in the table below.
The Turret boards below can be ordered with just the holes drilled or with the turret lugs installed


See the info at the bottom of this page about having other turret boards made
Turret lugs and standoffs are located on this page
Eyelet and Turret Lug staking tools are located on this page
Fender eyelet boards are on this page
Misc Eyelet boards are on this page

Click on the Board Name-Info Link to go to the info page for that board
Click on the small images to see larger images
Drilled Board price is for the board with drilled holes only and no turret lugs

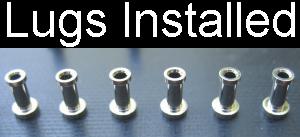

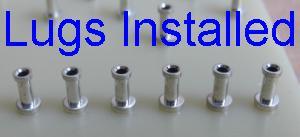

Installed Board price has the holes drilled and the turret lugs installed

#	Make	Board Name Info Link	Model	Drilled Price	Color	Installed Price	Installed Image	Board Length	Holes
1	Fender	AB763-1 channel	AB763	Drilled Only		Turrets Installed		13.000	103
2	Fender	AB763-1 channel	AB763	Drilled Only		Turrets Installed		13.000	103
3	Fender	AB763-2 channel	AB763	Drilled Only		Turrets Installed		15.630	121
4	Fender	AB763-2 channel	AB763	Drilled Only		Turrets Installed		15.630	121
5	Fender	AB763-2 channel Short	AB763	Drilled Only		Turrets Installed		12.680	99
6	Fender	AB763-2 channel Short	AB763	Drilled Only		Turrets Installed		12.680	99
7	Fender	AB763-2 Channel Twin	AB763	Drilled Only		Turrets Installed		17.000	127
8	Fender	AB763-2 Channel Twin	AB763	Drilled Only		Turrets Installed		17.000	127
9	Fender	Bassman	5F6A	Drilled Only		Turrets Installed		10.500	77
10	Fender	Bassman	5F6A	Drilled Only		Turrets Installed		10.500	77
11	Fender	Blues Jr Conversion		Drilled Only		Turrets Installed		12.000	79
12	Fender	Blues Jr Conversion		Drilled Only		Turrets Installed		12.000	79

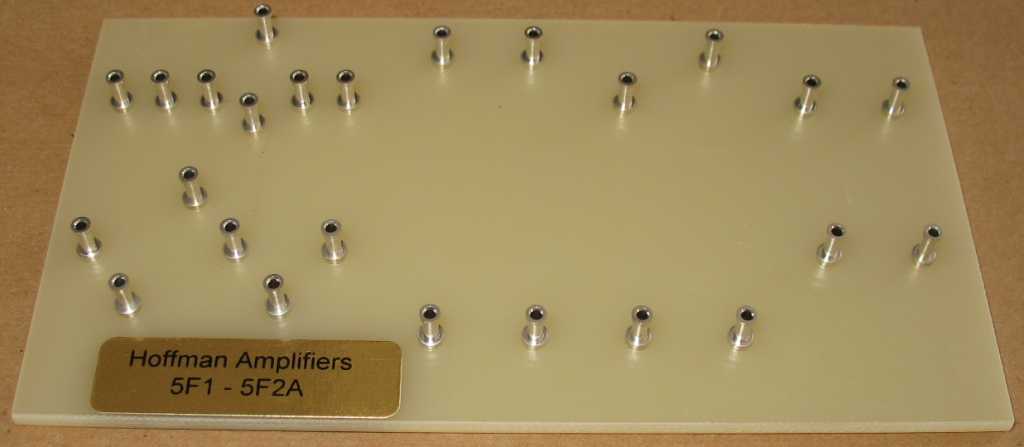

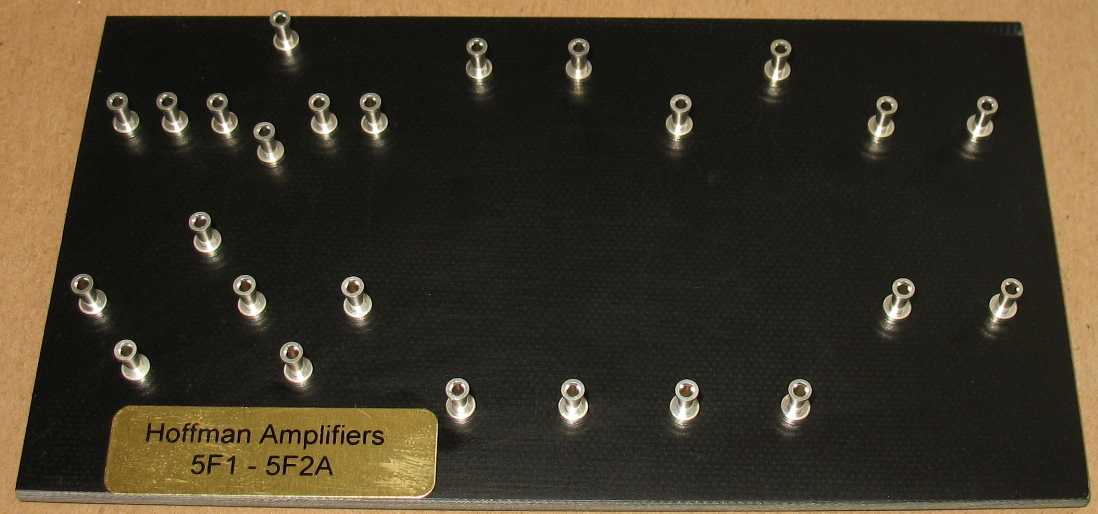

13	Fender	Champ	5F1	Drilled Only		Turrets Installed		5.650	25
14	Fender	Champ	5F1	Drilled Only		Turrets Installed		5.650	25
15	Fender	Deluxe	5E3	Drilled Only		Turrets Installed		8.250	42
16	Fender	Deluxe	5E3	Drilled Only		Turrets Installed		8.250	42
17	Fender	Princeton	5F2A	Drilled Only		Turrets Installed		5.650	25
18	Fender	Princeton	5F2A	Drilled Only		Turrets Installed		5.650	25
#	Make	Board Name Info Link	Model	Drilled Price	Color	Installed Price	Installed Image	Board Length	Holes

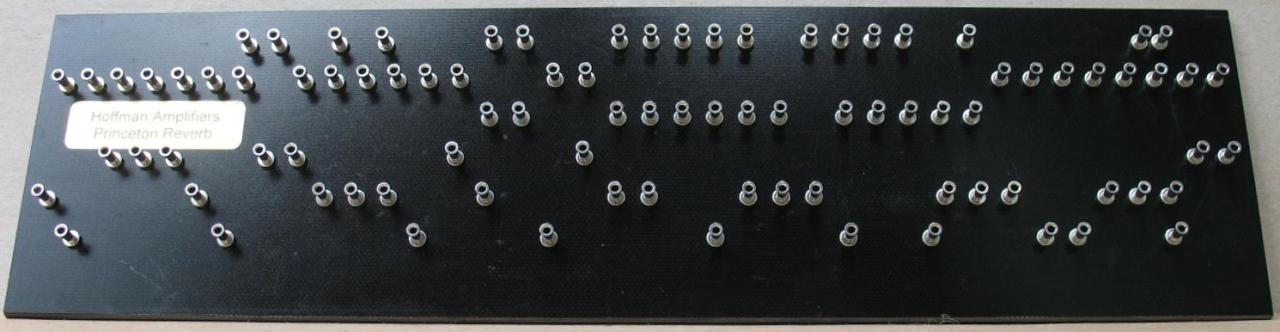

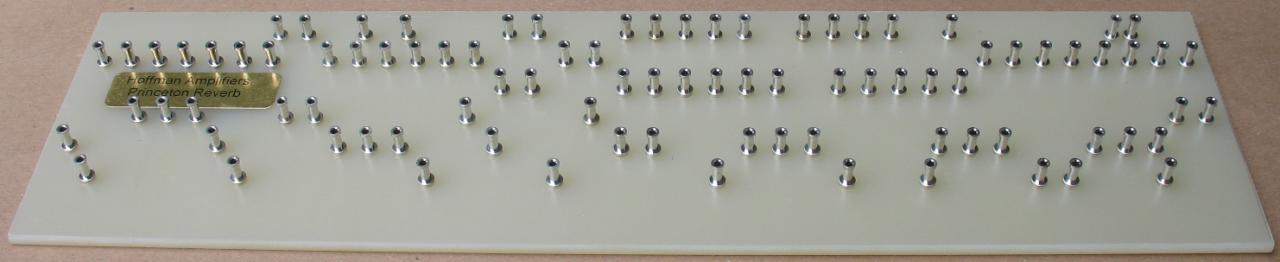

19	Fender	Princeton Reverb	AA1164	Drilled Only		Turrets Installed		11.500	90
20	Fender	Princeton Reverb	AA1164	Drilled Only		Turrets Installed		11.500	90

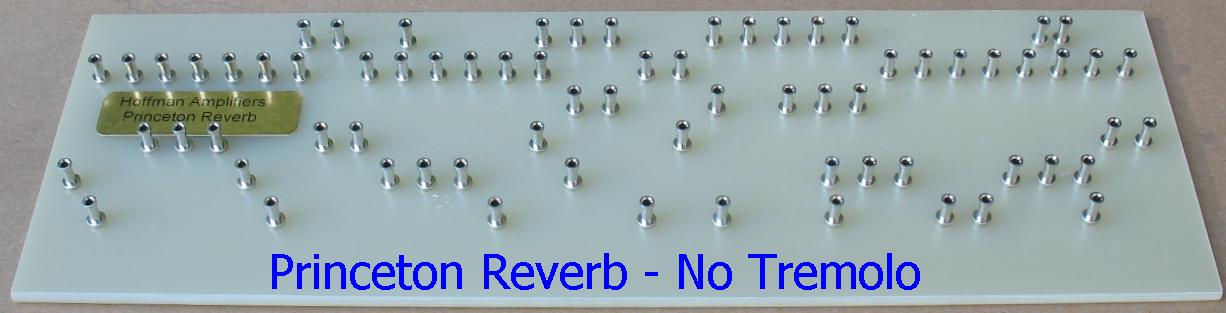

21	Fender	Princeton Reverb-no trem	AA1164	Drilled Only		Turrets Installed		9.410	72
22	Fender	Princeton Reverb-no trem	AA1164	Drilled Only		Turrets Installed		9.410	72
23	Fender	Pro Junior		Drilled Only		Turrets Installed		9.750	73
24	Fender	Pro Junior		Drilled Only		Turrets Installed		9.750	73

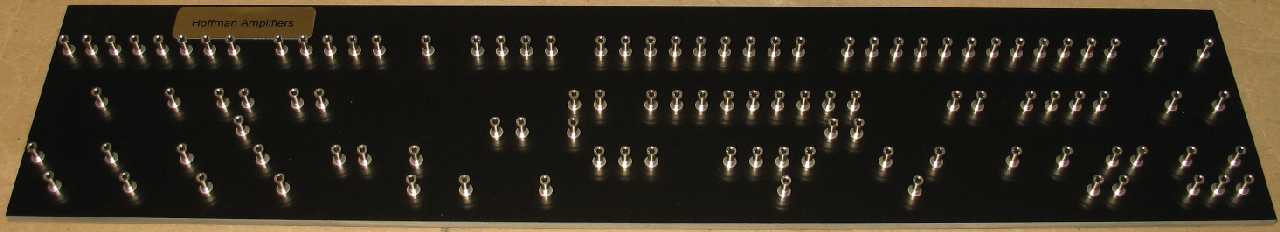

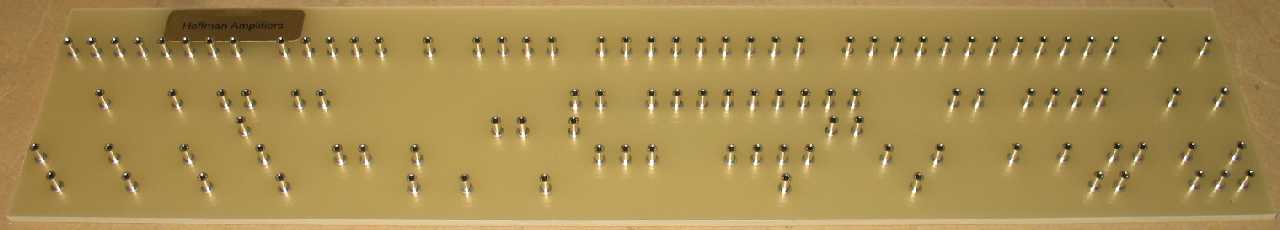

25	Fender	Re-Vibe		Drilled Only		Turrets Installed		14.500	106
26	Fender	Re-Vibe		Drilled Only		Turrets Installed		14.500	106

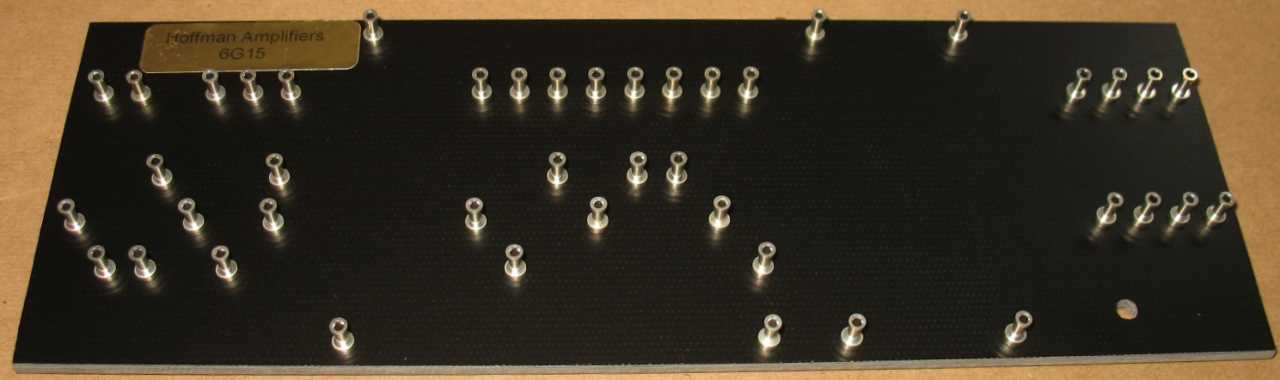

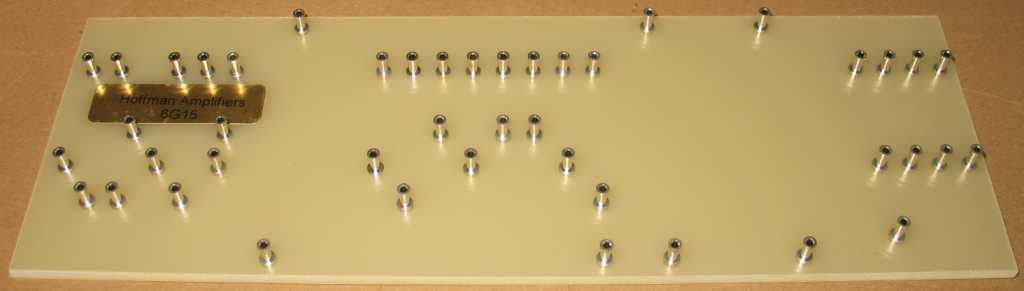

27	Fender	Reverb Unit	6G15	Drilled Only		Turrets Installed		9.130	45
28	Fender	Reverb Unit	6G15	Drilled Only		Turrets Installed		9.130	45

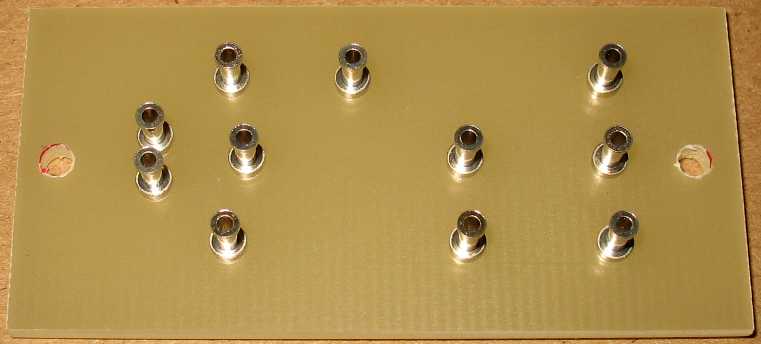

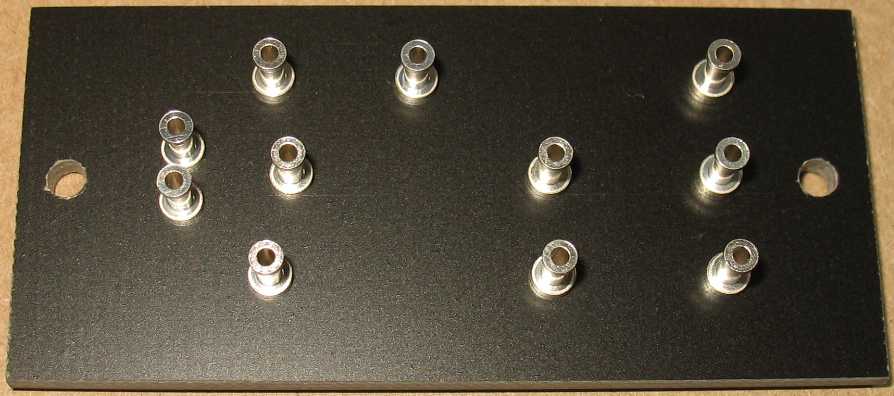

29	Hoffman	Turret Bias Board	Hoffman	Drilled Only		Turrets Installed		3.125	13
30	Hoffman	Turret Bias Board	Hoffman	Drilled Only		Turrets Installed		3.125	13

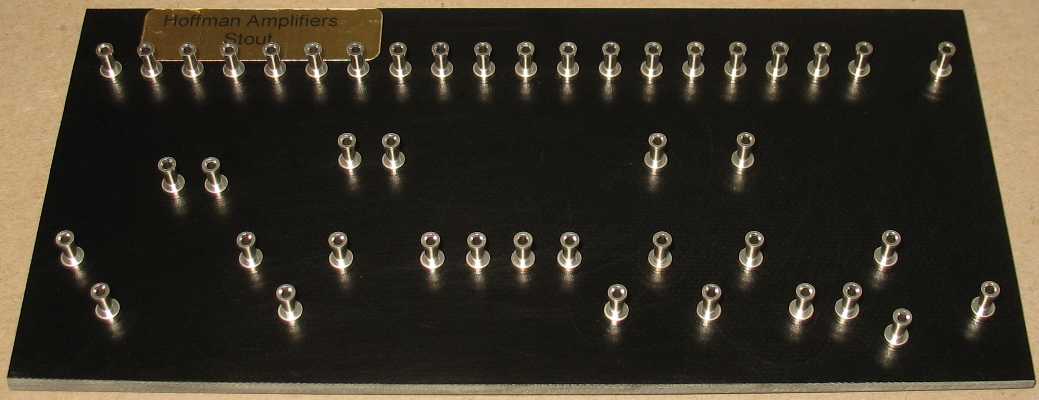

31	Marshall	18 Watt Stout		Drilled Only		Turrets Installed		6.500	44
32	Marshall	18 Watt Stout		Drilled Only		Turrets Installed		6.500	44

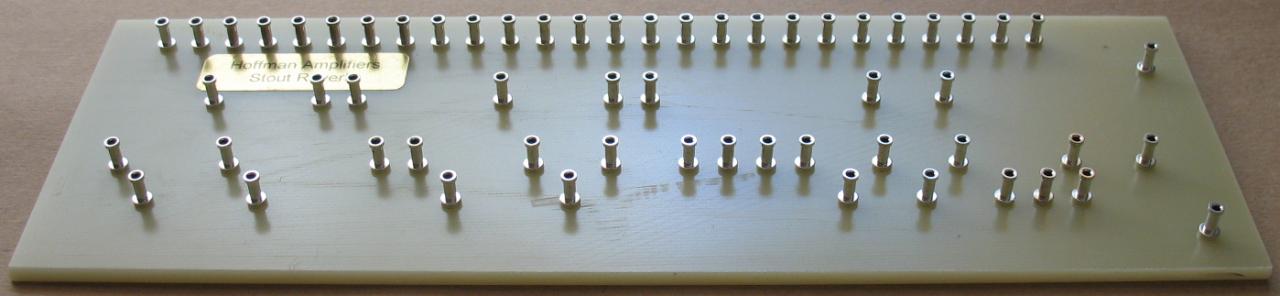

33	Marshall	18 Watt Stout Reverb		Drilled Only		Turrets Installed		9.250	59
34	Marshall	18 Watt Stout Reverb		Drilled Only		Turrets Installed		9.250	59

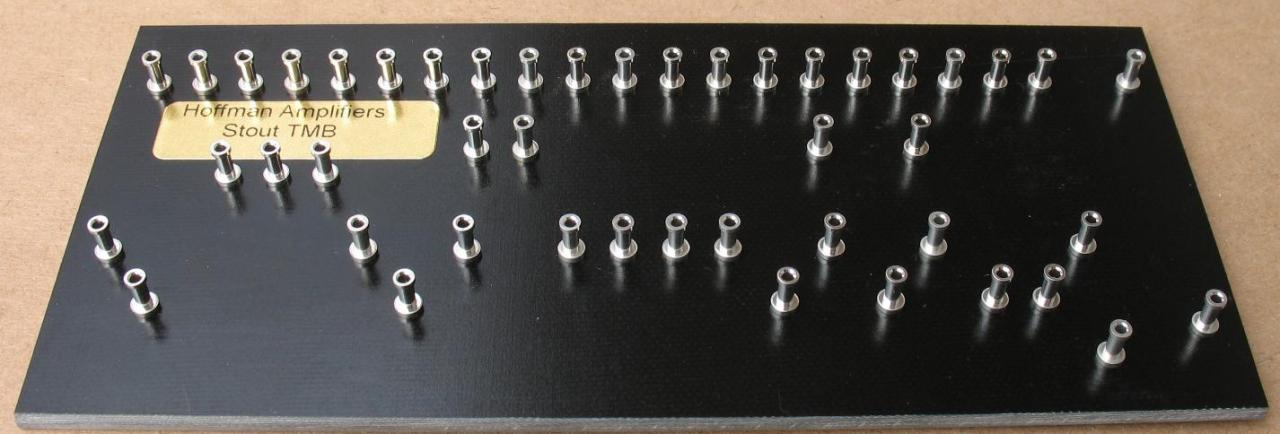

35	Marshall	18 Watt Stout TMB		Drilled Only		Turrets Installed		6.750	46
36	Marshall	18 Watt Stout TMB		Drilled Only		Turrets Installed		6.750	46
#	Make	Board Name Info Link	Model	Drilled Price	Color	Installed Price	Installed Image	Board Length	Holes
37	Marshall	Plexi 100		Drilled Only		Turrets Installed		12.380	93
38	Marshall	Plexi 100		Drilled Only		Turrets Installed		12.380	93
39	Marshall	Plexi 50		Drilled Only		Turrets Installed		11.250	83
40	Marshall	Plexi 50		Drilled Only		Turrets Installed		11.250	83

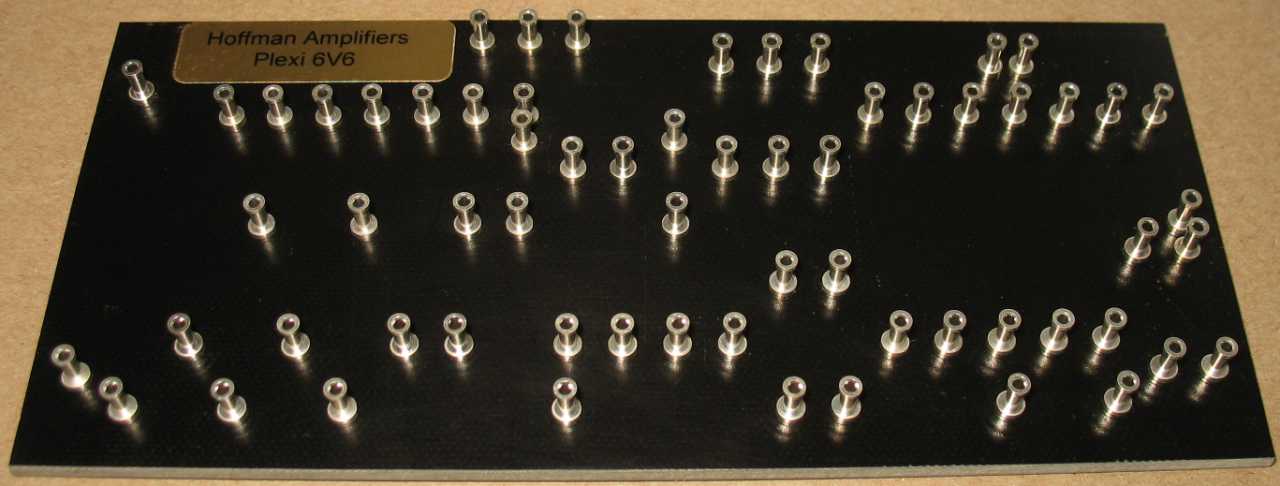

41	Marshall	Plexi 6V6		Drilled Only		Turrets Installed		6.750	64
42	Marshall	Plexi 6V6		Drilled Only		Turrets Installed		6.750	64
43	Tubenit	Dmars	Tubenit	Drilled Only		Turrets Installed		9.880	72
44	Tubenit	Dmars	Tubenit	Drilled Only		Turrets Installed		9.880	72
45	Tubenit	Tweed BM	Tubenit	Drilled Only		Turrets Installed		8.500	57
46	Tubenit	Tweed BM	Tubenit	Drilled Only		Turrets Installed		8.500	57

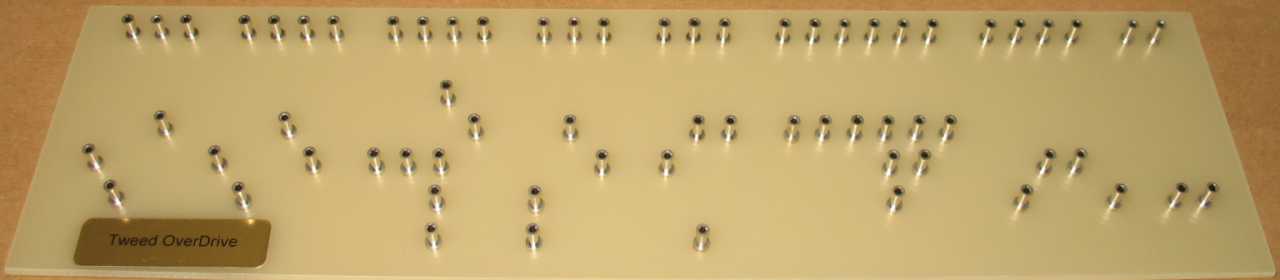

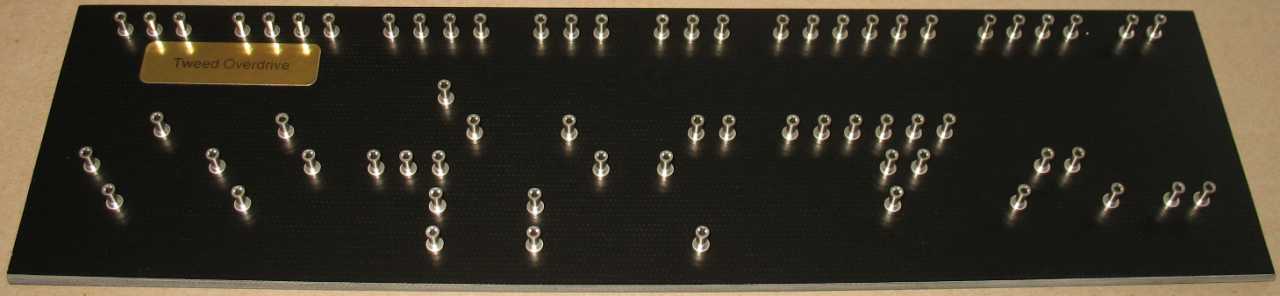

47	Tubenit	Tweed Overdrive	Tubenit	Drilled Only		Turrets Installed		11.500	66
48	Tubenit	Tweed Overdrive	Tubenit	Drilled Only		Turrets Installed		11.500	66

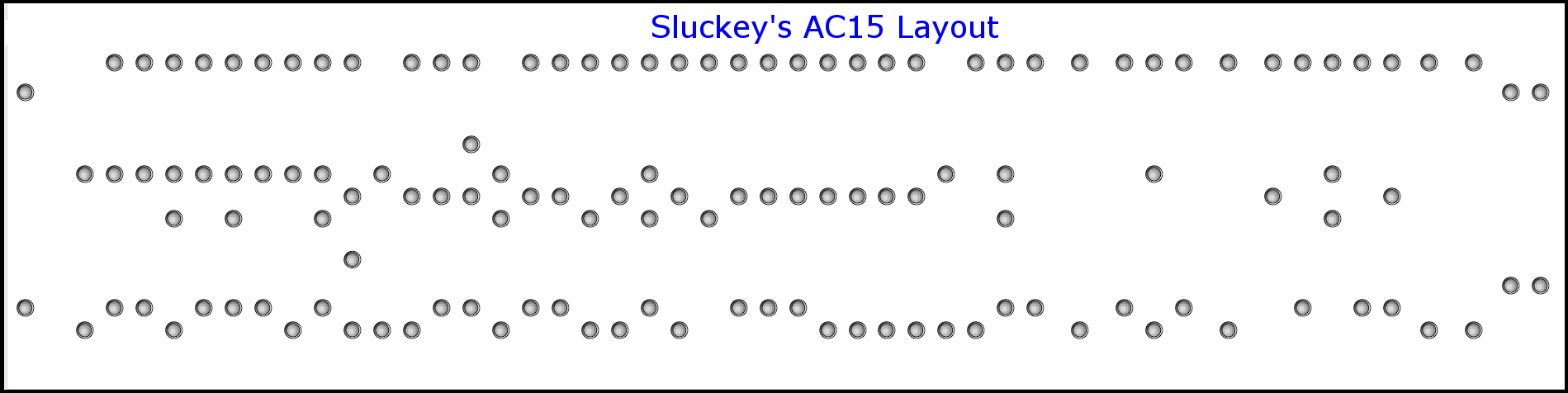

49	Vox	AC15-no wire holes	Sluckey	Drilled Only		Turrets Installed		14.000	133
50	Vox	AC15-no wire holes	Sluckey	Drilled Only		Turrets Installed		14.000	133

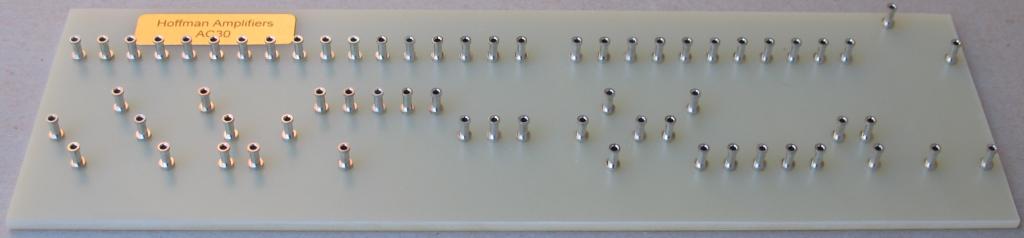

51	Vox	AC30-no trem	Hoffman	Drilled Only		Turrets Installed		10.000	66
52	Vox	AC30-no trem	Hoffman	Drilled Only		Turrets Installed		10.000	66

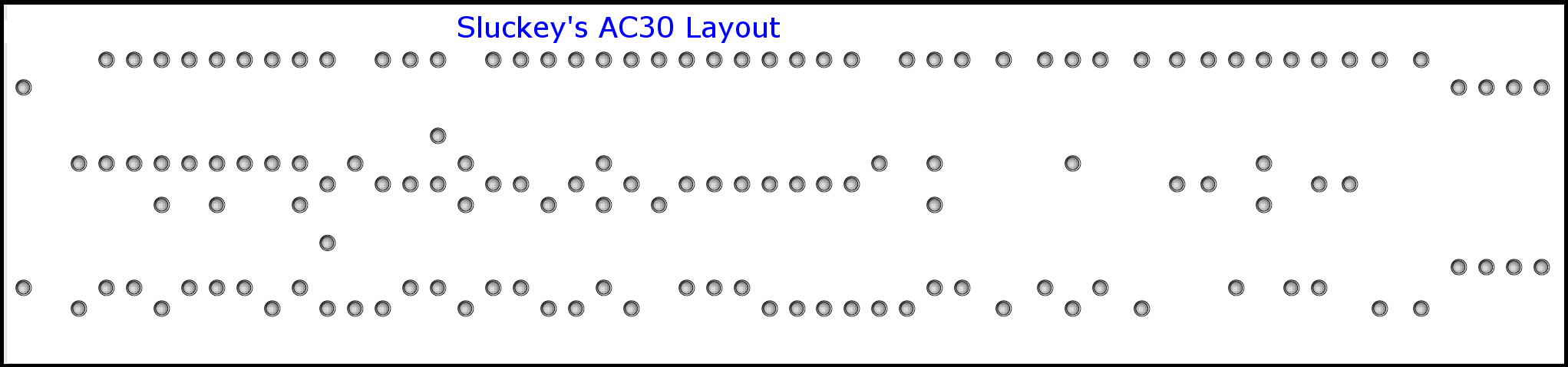

53	Vox	AC30-no wire holes	Sluckey	Drilled Only		Turrets Installed		15.000	141
54	Vox	AC30-no wire holes	Sluckey	Drilled Only		Turrets Installed		15.000	141

You can also have custom Turret boards and eyelet boards made
See this post on my amp forum about having custom boards made

There is a large collection of amp schematics and layout diagrams in my Schematics Library here

---
